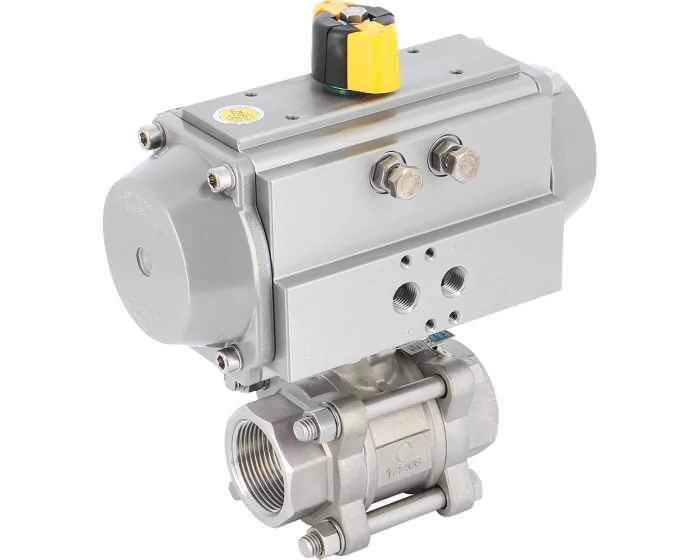

The 746 XS series 3-piece body ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE/glass seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 63 bar, TS: 180°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 65.0 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE-Glass |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 180 |
| TS min (°C) | -25 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 3-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF Double acting DN8 - 1/4'' | 272500017004R | S1000171 |
€180.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF Spring return DN8 - 1/4'' | 272500017104R | S1000172 |
€201.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF Double acting DN10 - 3/8'' | 272501017004R | S1000173 |
€180.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF Spring return DN10 - 3/8'' | 272501017104R | S1000174 |
€201.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF Double acting | 272642017004R | S1000175 |
€182.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF Spring return | 272642017104R | S1000176 |
€203.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF Double acting | 272643017004R | S1000177 |
€195.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF Spring return | 272643017106R | S1000178 |
€243.73
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF Double acting | 272644017004R | S1000179 |
€216.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF Spring return | 272644017107R | S1000180 |
€280.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF Double acting | 272645017006R | S1000181 |
€259.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF Spring return | 272645017108R | S1000182 |
€355.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF Double acting | 272646017007R | S1000183 |
€331.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF Spring return | 272646017109R | S1000184 |
€460.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF Double acting | 272647017008R | S1000185 |
€430.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF Spring return | 272647017110R | S1000186 |
€591.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 BSP FF Double acting | 272648017008R | S1000187 |
€701.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 BSP FF Spring return | 272648017110R | S1000188 |
€862.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' BSP FF Double acting | 272649017009R | S1000189 |
€910.40
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' BSP FF Spring return | 272649017111R | S1000190 |
€1,163.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' BSP FF Double acting | 272650017010R | S1000191 |
€1,303.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' BSP FF Spring return | 272650017111R | S1000192 |
€1,502.70
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body BSP FF Spring return DN8 - 1/4'' | 272660017104R | S1000193 |
€201.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Double acting Welding BW DN10 - 3/8'' | 272661017004R | S1000194 |
€180.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body Spring return Welding BW DN10 - 3/8'' | 272661017104R | S1000195 |
€201.56
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Double acting Welding BW | 272662017004R | S1000196 |
€182.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Spring return Welding BW | 272662017104R | S1000197 |
€203.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Double acting Welding BW | 272663017004R | S1000198 |
€195.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Spring return Welding BW | 272663017106R | S1000199 |
€243.73
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Double acting Welding BW | 272664017004R | S1000200 |
€216.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Spring return Welding BW | 272664017107R | S1000201 |
€280.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Double acting Welding BW | 272665017006R | S1000202 |
€259.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Spring return Welding BW | 272665017108R | S1000203 |
€355.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Double acting Welding BW | 272666017007R | S1000204 |
€331.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Spring return Welding BW | 272666017109R | S1000205 |
€460.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Double acting Welding BW | 272667017008R | S1000206 |
€430.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Spring return Welding BW | 272667017110R | S1000207 |
€591.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Double acting Welding BW | 272668017008R | S1000208 |
€701.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Spring return Welding BW | 272668017110R | S1000209 |
€862.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Double acting Welding BW | 272669017009R | S1000210 |
€910.40
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Spring return Welding BW | 272669017111R | S1000211 |
€1,163.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Double acting Welding SW | 272682017004R | S1000212 |
€182.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Spring return Welding SW | 272682017104R | S1000213 |
€203.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Double acting Welding SW | 272683017004R | S1000214 |
€195.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Spring return Welding SW | 272683017106R | S1000215 |
€243.73
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Double acting Welding SW | 272684017004R | S1000216 |
€216.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Double acting Welding SW | 272685017006R | S1000217 |
€259.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Spring return Welding SW | 272685017108R | S1000218 |
€355.84
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Double acting Welding SW | 272686017007R | S1000219 |
€331.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Spring return Welding SW | 272686017109R | S1000220 |
€460.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Double acting Welding SW | 272687017008R | S1000221 |
€430.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Spring return Welding SW | 272687017110R | S1000222 |
€591.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Double acting Welding SW | 272688017008R | S1000223 |
€701.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 Spring return Welding SW | 272688017110R | S1000224 |
€862.34
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Double acting Welding SW | 272689017009R | S1000225 |
€910.40
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' Spring return Welding SW | 272689017111R | S1000226 |
€1,163.27
(excl. btw)
|
add to cart |
